Axial Thrust Balancing in Centrifugal Pumps

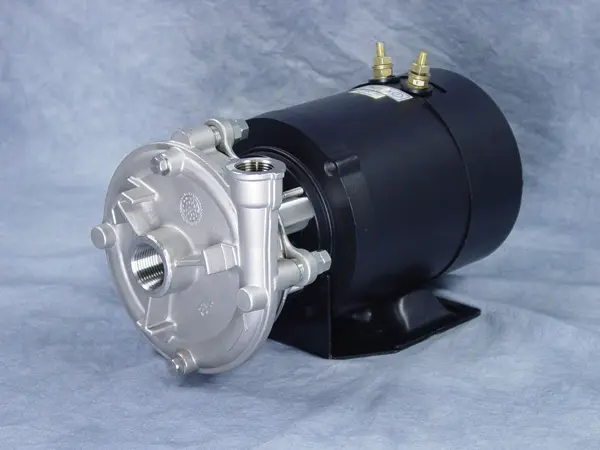

DC 10 DESIGN FEATURES

Impeller Design

DC Series semi-open impellers allow the pump to pass small solids and fibrous material while close running tolerances maintain high efficiency and performance. Impellers are pre-trimmed to be non-overloading to the pump and motor size indicated.


Axial Balance System

The DC Series pumps utilize a thrust balancing system, which combines the advantages of both static and dynamic balancing techniques to reduce axial thrust and provide longer bearing life.


Mechanical Seal Box

The large seal chamber provides a wide fluid passage area for maximum cooling of the seal faces and allows debris and gases to be flushed away.


Contact Us

We're a leading supplier of Centrifugal Pumps on the west coast. With locations in Arizona, California, Idaho, Montana, Washington and Northern Mexico, we can get you the Centrifugal Pumps you need – fast. Contact us for more pump options.


Adjustable Casing

DC Series pump casings are axially adjustable allowing the use of custom impellers for OEM applications and to allow restoration of performance by closing up the internal clearances that develop over the course of a unit’s extended service life.


Heavy Duty Mounting Bracket

DC Series centrifugal pumps come equipped with a heavy duty mounting bracket to help secure the pump and motor under harsh vibration and jarring conditions normally associated with vehicle mounted applications.


DC Pump Design Features

  • 100% Stainless Construction
  • Capacities to 20 GPM
  • Heads to 100 Feet (43 PSI)
  • Temperatures from -20° to 250°F
  • End Suction and Top Discharge
  • 12VDC 1HP TENV Motor
  • Heavy Duty Mounting Bracket for Mobile Applications

OPTIONAL FEATURES

Seal Flushing Lines can be added for extended life of the Mechanical Seals, especially when pumping fluids that contain solids and debris.
For ease of installation, the pump discharge can be rotated in 90° increments by rotating the casing during the assembly process.
As with all MTH pumps, optional thread types are available to fit your specific requirements.
