What Is NPSH? Why Your Pump’s Suction Conditions Matter
If you work with centrifugal pumps, you may have seen the term NPSH on a pump curve or specification sheet. But what does NPSH actually mean, and why does it matter?
NPSH stands for Net Positive Suction Head. In simple terms, it describes whether there is enough pressure available at the inlet of a centrifugal pump to keep the liquid from vaporizing as it enters the pump. When there isn't enough available suction pressure, the pump can experience cavitation, reduced performance, excessive noise, and eventually damage.
Understanding NPSH can help you select the right centrifugal pump and troubleshoot problems before they become expensive repairs.
What Does NPSH Mean?
A centrifugal pump needs adequate pressure at its suction inlet to move liquid properly. As liquid enters the pump and approaches the impeller, its pressure drops. If that pressure becomes too low, the liquid can begin forming vapor bubbles.
NPSH is a way of evaluating how close the liquid is to that vaporization point.
When looking at centrifugal pump specifications, you'll typically encounter two different values: NPSH Available and NPSH Required. Understanding the difference between them is the key to understanding NPSH.
What Is NPSH Available?
NPSH Available, commonly written as NPSHa, is determined by your pumping system.
It represents the amount of suction head actually available to the pump above the liquid's vapor pressure. Tank pressure, liquid level, suction lift, elevation, pipe size, friction losses, liquid temperature, and other suction-side conditions can all affect NPSHa.
For example, a long suction line with several elbows, an undersized pipe, a clogged strainer, or a pump positioned far above the liquid source can reduce the pressure available at the pump inlet.
This is why two identical centrifugal pumps can perform very differently when installed in two different systems.
What Is NPSH Required?
NPSH Required, or NPSHr, is a characteristic of the pump itself.
The pump manufacturer determines how much NPSH a particular pump requires at a given flow rate. This information is typically shown on the manufacturer's pump performance curve.
NPSHr is not necessarily one fixed number for the entire pump. It changes with operating conditions, particularly flow rate. When evaluating a centrifugal pump, you should therefore check NPSHr at the actual operating point rather than relying on a single number from a specification sheet.

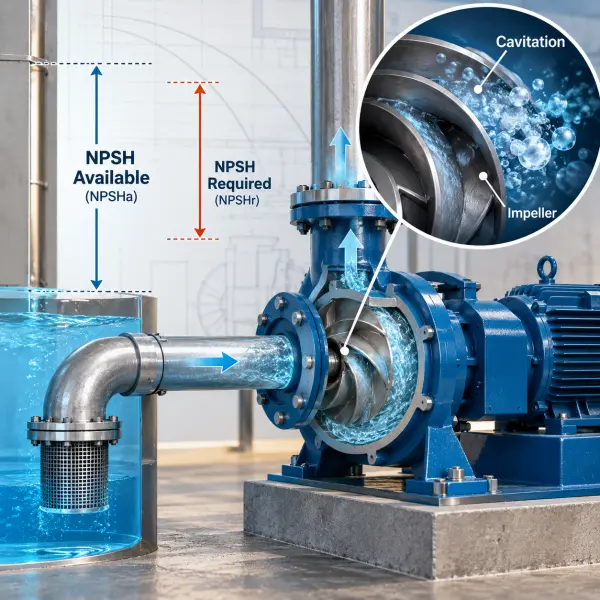

NPSHa vs. NPSHr: What's the Difference?
The easiest way to remember the difference is:
NPSHa = what your system provides
NPSHr = what your pump requires
For proper operation, the NPSH available from the system needs to exceed the NPSH required by the pump, with an appropriate safety margin.
If the pump requires more suction head than the system can provide, the pressure inside the pump can fall below the liquid's vapor pressure. That's when cavitation becomes a concern.
What Happens When a Pump Doesn't Have Enough NPSH?
One of the biggest consequences of inadequate NPSH is cavitation.
During cavitation, vapor bubbles form in low-pressure areas of the pump. As those bubbles move into areas of higher pressure, they rapidly collapse. Those repeated collapses can create noise, vibration, unstable performance, and physical damage to the impeller and other components.
A cavitating centrifugal pump may sound like gravel or marbles are moving through it. You may also notice reduced flow, inconsistent pressure, increased vibration, or declining pump performance.
Ignoring these symptoms can turn a suction-side system problem into a pump repair problem.
What Can Reduce NPSH Available?
Many NPSH problems actually begin outside of the pump.
Long suction piping, small-diameter piping, excessive fittings, clogged strainers, partially closed valves, high suction lift, and other restrictions can increase friction losses before the liquid reaches the pump. Lower liquid levels can also reduce available suction head.
Temperature matters too. As liquid temperature rises, its vapor pressure increases, meaning it can vaporize more easily. This makes NPSH especially important when pumping hot liquids.
Even elevation can play a role because atmospheric pressure decreases at higher altitudes.
This is why centrifugal pump selection shouldn't be based on flow and discharge pressure alone. The conditions on the suction side of the system matter too.
How Can You Improve Suction Conditions?
If a centrifugal pump doesn't have enough NPSH available, the solution isn't necessarily a larger pump.
Instead, look at ways to improve the suction conditions. This may include shortening the suction piping, increasing its diameter, reducing unnecessary fittings and restrictions, cleaning a clogged strainer, lowering the pump relative to the liquid source, increasing the liquid level above the pump, or reducing excessive flow when appropriate.
The best solution depends on the application, but the goal is the same: get the liquid to the pump inlet with sufficient pressure remaining.
Check NPSH Before Selecting a Centrifugal Pump
NPSH can sound complicated, but the basic principle is straightforward. Your system needs to provide enough suction head for the centrifugal pump to operate without allowing the liquid to vaporize inside the pump.
When selecting a pump, don't stop at GPM, total dynamic head, horsepower, and connection size. Review the manufacturer's performance curve, determine the NPSH required at your operating point, and make sure your system can provide adequate NPSH available with an appropriate margin.
Taking suction conditions into account during pump selection can help prevent cavitation, improve performance, and extend the life of the pump.
