Bolted vs. Clamped AODD Pumps: What's the Difference?
Air-operated double-diaphragm (AODD) pumps are widely used for transferring chemicals, wastewater, and other industrial fluids. While these pumps operate using the same basic pumping principle, their construction can vary significantly. One important distinction is whether the pump uses a bolted or clamped design. Understanding the differences between bolted and clamped AODD pumps can help you select the right equipment for your application and maintenance requirements.
What Are Bolted and Clamped AODD Pumps?

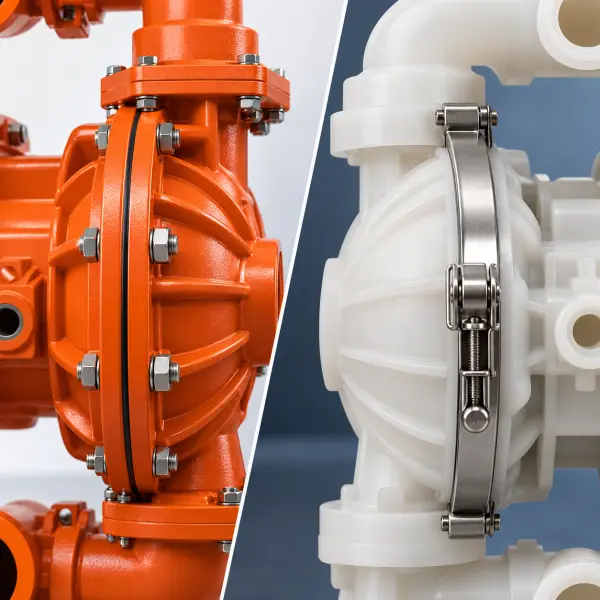

Both bolted and clamped AODD pumps use compressed air to move flexible diaphragms back and forth, creating suction and discharge cycles that transfer fluid. The main difference lies in how the pump's chambers and manifolds are secured. Bolted pumps use a series of fasteners to hold components together, while clamped pumps use external clamp bands that can be removed to access internal components.
Although both designs can handle a variety of industrial fluids, their construction offers different advantages depending on operating conditions and maintenance needs.
Benefits of Bolted AODD Pumps
Bolted AODD pumps are designed with secure chamber and manifold connections that provide consistent compression of sealing surfaces when properly assembled. This construction can offer improved fluid containment, making bolted designs particularly useful in chemical processing and applications involving hazardous or aggressive fluids. Their secure assembly also makes them a practical option for demanding industrial environments where reliable containment is a priority.
Some bolted pump models also feature optimized internal flow paths that improve pumping efficiency. However, these performance benefits depend on the specific pump design rather than the bolted construction alone.
Benefits of Clamped AODD Pumps
Clamped AODD pumps are known for their convenient maintenance access. Instead of removing multiple fasteners, technicians can release the clamp bands to access the pump's fluid chambers and internal components. This can simplify diaphragm replacement, inspection, and cleaning while potentially reducing maintenance downtime.
These advantages make clamped pumps useful in applications requiring frequent servicing, product changeovers, or cleaning. Industries such as paints and coatings, general manufacturing, and certain hygienic processing operations may benefit from easier disassembly. However, sanitary suitability depends on the complete pump design, materials, and applicable hygiene requirements.
Which AODD Pump Design Is Right for Your Application?
Choosing between bolted and clamped AODD pumps depends on the fluid being transferred, operating conditions, and maintenance priorities. Bolted configurations are often preferred when fluid containment is especially important, such as in chemical processing or demanding industrial fluid-transfer applications. Clamped configurations may be more convenient when frequent maintenance or cleaning is required.
Other considerations include chemical compatibility, diaphragm and housing materials, flow requirements, discharge pressure, and available maintenance resources. Neither construction style is universally better, and both can provide dependable performance when properly selected for the application.
Wilden Bolted and Clamped AODD Pump Options
Wilden offers a variety of AODD pumps in both bolted and clamped configurations, including options within its Pro-Flo and Pro-Flo SHIFT product families. These pumps are available in different sizes, materials, and diaphragm configurations to accommodate a wide range of industrial fluid-handling requirements.
As a Wilden Master Distributor, Pumping Solutions carries Wilden pumps, replacement diaphragms, repair kits, and genuine replacement parts. Whether your application requires the containment advantages of a bolted design or the maintenance accessibility of a clamped pump, our team can help identify an appropriate configuration.
Find the Right AODD Pump With Pumping Solutions
Understanding the differences between bolted and clamped AODD pumps is an important step toward selecting equipment that meets your operational needs. If you're comparing pump designs or looking for a replacement, contact Pumping Solutions at sales@apumpstore.com or 800-603-0399. Our team can help you explore available Wilden pump options and find the right solution for your application.
