How to Choose the Right Pump Size for Your Application
Choosing the right pump involves more than simply matching the inlet and outlet connection size to your piping. A pump that is too small may struggle to provide the flow and pressure your system requires, while an oversized pump can waste energy, increase operating costs, and contribute to premature wear.
Whether you are replacing an existing pump or selecting equipment for a new system, understanding a few key operating requirements can help narrow down your options and prevent costly sizing mistakes.
Start With the Required Flow Rate
Flow rate is one of the first factors to consider when sizing a pump. It represents how much liquid needs to move through the system within a specific amount of time and is commonly measured in gallons per minute (GPM).
The correct flow rate depends entirely on the application. A chemical transfer process may require a relatively low flow rate, while a large industrial circulation system could require hundreds of gallons per minute.
Rather than automatically choosing the largest pump available, determine the minimum and maximum flow your process actually requires. This provides a much better starting point for selecting a pump that can operate efficiently within your system.
Determine the Pressure or Head Requirements
Moving the required amount of liquid is only part of the job. The pump must also overcome the resistance within the system.
For centrifugal pumps, this is commonly expressed as total dynamic head (TDH). Total dynamic head accounts for factors such as the vertical distance the liquid must travel, pressure requirements at the discharge point, and friction losses caused by piping, valves, fittings, filters, and other system components.

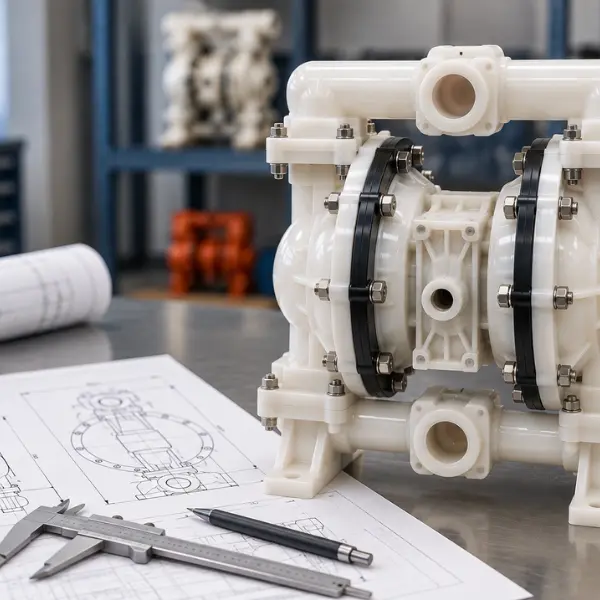

For positive displacement pumps, including air-operated double-diaphragm (AODD) pumps, discharge pressure and available air pressure are important considerations.
Two systems requiring the same flow rate can require very different pumps if one has significantly greater pressure or head requirements.
Consider What You Are Pumping
Pump sizing should always account for the characteristics of the fluid.
Water behaves very differently from oils, slurries, concentrated chemicals, or fluids containing suspended solids. Important characteristics to consider include:
- Viscosity
- Specific gravity
- Temperature
- Chemical composition
- Solids content and particle size
- Abrasiveness
Higher-viscosity fluids, for example, can reduce flow and increase the amount of power required to move the liquid. Fluids containing solids may require larger internal passages or a pump specifically designed to handle suspended material.
Chemical compatibility is equally important. The pump body, seals, diaphragms, O-rings, and other wetted components must be compatible with the fluid being transferred.
Don't Choose a Pump Based on Connection Size Alone
One common mistake is assuming that pipe or connection size determines the correct pump size.
A 2-inch pump is not automatically the right choice simply because the system uses 2-inch piping.
Connection size is certainly part of the selection process, but pumps with similar connection sizes can have very different flow capabilities, pressure limitations, efficiency ranges, and fluid-handling characteristics.
The pump's published performance data should always be reviewed against the actual requirements of the application.
Use the Pump's Performance Curve
A pump performance curve is one of the most useful tools available when selecting equipment.
For a centrifugal pump, the curve shows the relationship between flow rate and head. As system conditions change, the pump's operating point moves along this curve. Performance curves may also provide information about efficiency, power requirements, impeller diameter, and net positive suction head required (NPSHr).
Ideally, a centrifugal pump should operate within the manufacturer's recommended operating range rather than continuously at the extreme ends of its curve.
AODD pumps also have performance curves. These typically show how flow changes based on discharge pressure and air pressure or air consumption. Reviewing these curves can help determine whether a particular pump can achieve the desired performance under your actual operating conditions.
Pay Attention to the Suction Side
A pump cannot perform properly if liquid cannot reach it effectively.
Consider the distance between the liquid source and the pump, the vertical suction lift, pipe diameter, fittings, fluid temperature, and restrictions on the suction side of the system.
For centrifugal pumps, net positive suction head available (NPSHa) must be sufficient compared with the pump manufacturer's NPSH requirement. Inadequate suction conditions can contribute to cavitation, which can cause noise, vibration, reduced performance, and damage to pump components.
Proper suction piping and pump placement can therefore be just as important as choosing the pump itself.
Bigger Isn't Always Better
It may seem safer to select a larger pump so there is plenty of additional capacity, but significantly oversizing a pump can create its own problems.
Depending on the pump and system, an oversized pump may result in excessive flow, unnecessary energy consumption, increased throttling, greater component wear, or inefficient operation.
At the same time, undersizing can leave a pump running at or near its limits just to keep up with system demand.
The goal is to select a pump that comfortably meets the required operating conditions while remaining within an appropriate portion of its performance range.
Think Beyond Today's Operating Conditions
Before making a final selection, consider whether the system's requirements could change.
Will production increase? Could additional equipment be added to the system? Will the pump handle multiple fluids? Does the required flow vary throughout the day?
Some additional capacity may be appropriate when future operating requirements are known, but this should be considered intentionally rather than simply choosing a substantially larger pump "just in case."
Applications with frequently changing flow requirements may also benefit from equipment or controls designed to accommodate variable operating conditions.
What Information Should You Have Before Selecting a Pump?
When requesting a pump recommendation or comparing models, having the following information available can make the selection process much easier:
- Required flow rate
- Required discharge pressure or total dynamic head
- Suction conditions
- Fluid being pumped
- Fluid viscosity and specific gravity
- Operating temperature
- Solids content, if applicable
- Available power or compressed-air supply
- Pipe and connection sizes
- Preferred materials of construction
- Whether the pump will operate continuously or intermittently
The more accurately these conditions are defined, the easier it becomes to compare pump performance and identify equipment suited for the application.
Finding the Right Pump for Your System
There is no single pump size that works for every application. Proper pump selection comes from looking at the complete system—including flow, pressure, fluid properties, piping, suction conditions, and operating requirements.
Taking the time to evaluate these factors can help improve pump performance, reduce unnecessary energy use, and prevent problems caused by equipment that is poorly matched to the system.
